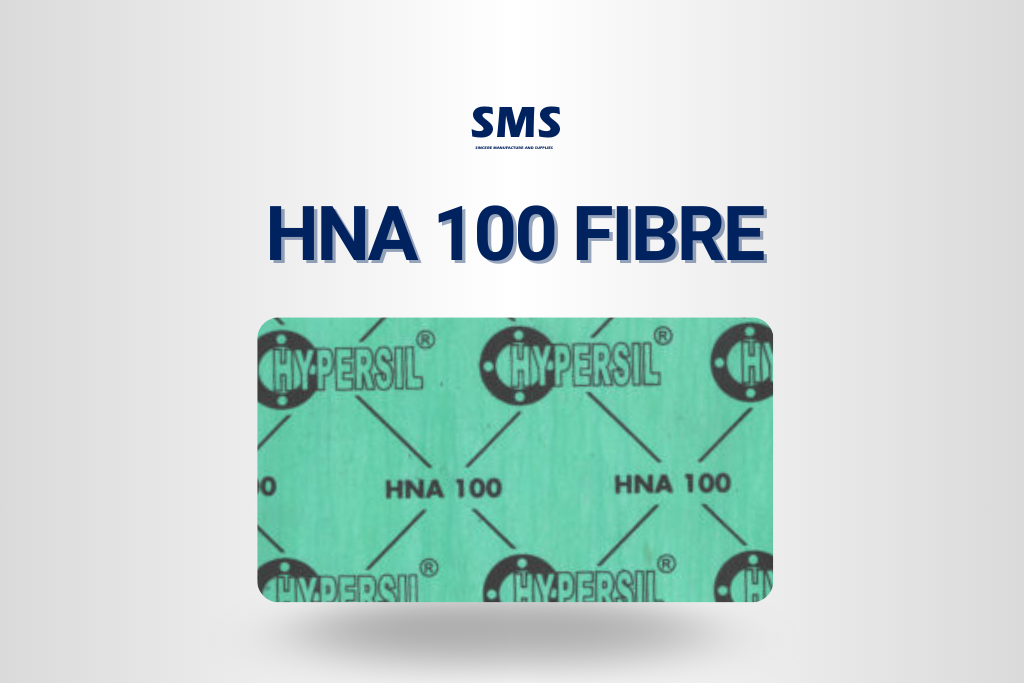

HNA 100 FIBRE

HNA 100 Fibre jointing sheets are made with high-quality cellulose fibre, NBR, and organic fibre. Designed for transformers, compressors, and oil pans in internal combustion engines. Withstands up to 200°C and 70 Kg/cm², offering reliable sealing performance for oil, water, and low to medium pressure applications.

Technical Specifications

• • Material: High-quality cellulose fibre, NBR, organic fibre

  • Max Peak Temperature: 200°C

  • Max Continuous Temperature: 150°C

  • Max Operating Pressure: 70 Kg/cm²

  • Standards: ASTM F36A, ASTM F146, DIN 52911, DIN 3535, DIN 52913

Typical Applications

• Compressors and pumps
• Transformers and switchgears
• Oil pans in internal combustion engines
• Light to medium load sealing
• Low to medium operating pressure systems
• Oil and water resistant sealing environments

Key Features

• Excellent oil and water resistance
• Withstands high temperature and pressure
• Strong mechanical properties
• Durable and reliable sealing solution
• Conforms to ASTM and DIN international standards
• Easy to cut and install for different industrial uses

Available Sizes

• • 0.5mm x 1.0m x 1.0m

  • 0.5mm x 1.5m x 1.5m

  • 1.0mm x 1.0m x 1.0m

  • 1.0mm x 1.5m x 1.5m

  • 1.5mm x 1.0m x 1.0m

  • 1.5mm x 1.5m x 1.5m
