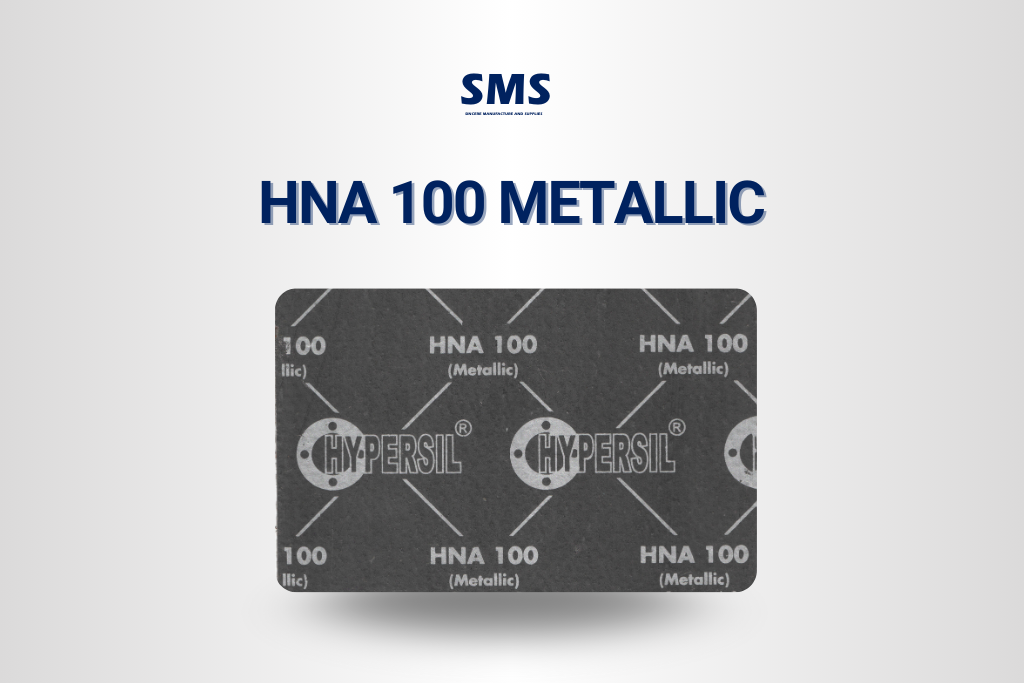

HNA 100 METALLIC

HNA 100 Fibre jointing sheets are made from high-quality cellulose fibre, NBR, and organic fibre. Designed for oil and water resistance, they withstand temperatures up to 200°C and pressures up to 70 Kg/cm². Ideal for compressors, transformers, and internal combustion engine oil pans.

Technical Specifications

• Material: High-quality cellulose fibre, NBR, organic fibre, metallic reinforcement
• Max Peak Temperature: 250°C
• Max Continuous Temperature: 200°C
• Max Operating Pressure: 90 Kg/cm²
• Standards: ASTM F36A, ASTM F146, DIN 52911, DIN 3535, DIN 52913

Typical Applications

• Transformers and switchgears
• Compressors and pumps
• Oil pans in internal combustion engines
• High-pressure sealing in industrial environments
• Oil and water resistant sealing under extreme conditions

Key Features

• Enhanced strength with metallic reinforcement
• Superior oil and water resistance
• Withstands higher temperature and pressure than standard fibre sheets
• Excellent mechanical properties and durability
• Conforms to international ASTM and DIN standards
• Reliable sealing solution for demanding industrial applications

Available Sizes

• 0.5mm x 1.0m x 1.0m
• 0.5mm x 1.5m x 1.5m
• 1.0mm x 1.0m x 1.0m
• 1.0mm x 1.5m x 1.5m
• 1.5mm x 1.0m x 1.0m
• 1.5mm x 1.5m x 1.5m
