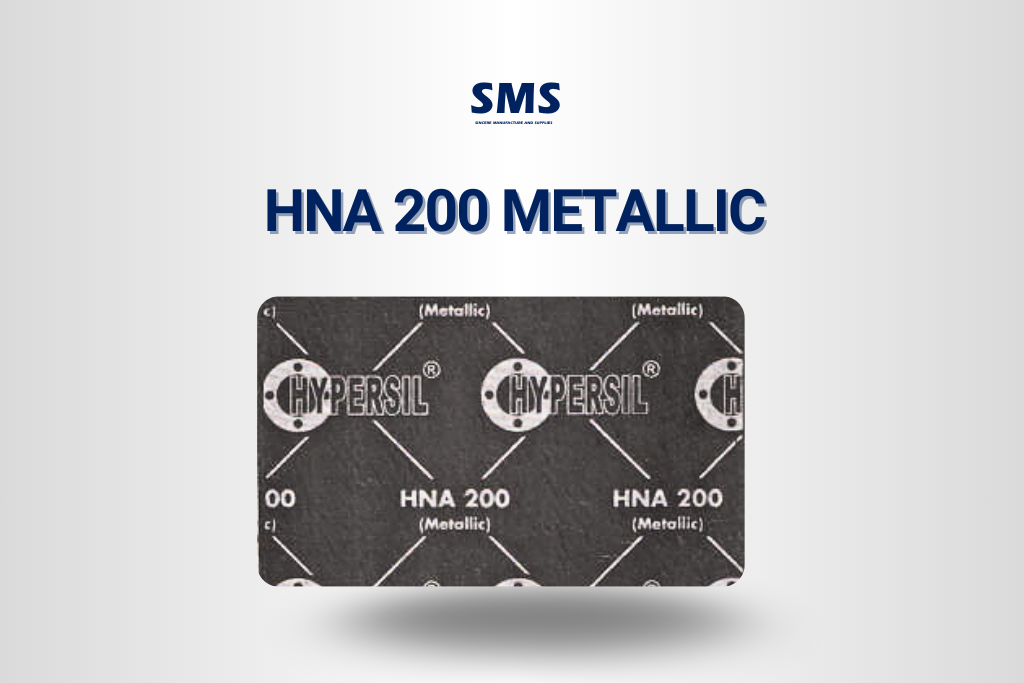

HNA 200 METALLIC

HNA 200 Metallic Jointing Sheets are engineered from high-quality cellulose fibre and NBR with metallic reinforcement, making them water and oil resistant. Designed for light to medium loadings and low operating pressure, these sheets are ideal for sealing applications that demand durability, flexibility, and long-term performance. The metallic reinforcement enhances its resistance to heat, pressure, and aggressive fluids, ensuring reliable performance across industrial and automotive applications.

Technical Specifications

• Conforms to Standards: ASTM F36A, ASTM F146, DIN 52911, DIN 3535, DIN 52913
• Max Peak Temperature: 300°C
• Max Continuous Temperature: 250°C
• Max Operating Pressure: 120 Kg./CM²

Typical Applications

• Transformers
• Compressors
• Valve covers and oil pans in internal combustion engines
• Industrial sealing under high temperature and pressure conditions

Key Features

• Manufactured from premium cellulose fibre and NBR with metallic reinforcement
• Water and oil resistant, suitable for demanding environments
• Handles high operating pressure up to 120 Kg./CM²
• Withstands extreme temperatures up to 300°C
• Designed for long service life and consistent sealing performance

Available Sizes

• 0.5mm x 1.0m x 1.0m
• 0.5mm x 1.5m x 1.5m
• 1.0mm x 1.0m x 1.0m
• 1.0mm x 1.5m x 1.5m
• 1.5mm x 1.0m x 1.0m
• 1.5mm x 1.5m x 1.5m
