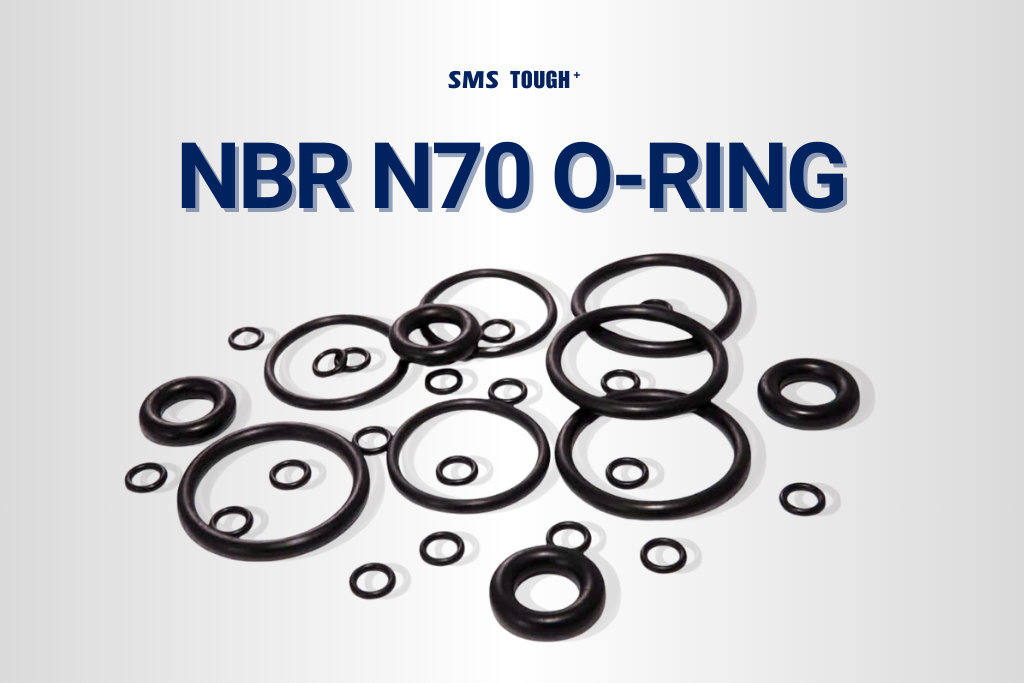

TOUGH⁺ NBR N70 O-RING

NBR N70 O-RING

Physical Properties

  • Operating temperature range: -30ºC TO 120ºC Peaks up to 140ºC
  • The vulcanization is effected
  • At the temperature of 160ºC for a period of 20minutes with slabs 2mm thickness
  • At the temperature of 160ºC for a period of 40minutes with specimen 29mm diameter 12.5mm height

Technical Specifications

  • Hardness: 70Shore A 70
  • Density: 1.25Gr/cm³
  • M100: 3.8Mpa
  • Tensile Strength: 14.3Mpa
  • Elongation at break: 390%
  • Tear Strength: 49N/mm



NBR N70 O-Ring | Nitrile N70 O-Ring | NBR Rubber Seal | Oil Resistant O-Ring | Industrial NBR O-Ring | NBR 70 Shore O-Ring | Hydraulic NBR O-Ring | Fuel Resistant O-Ring | NBR N70 Seal Ring | Mechanical NBR O-Ring
