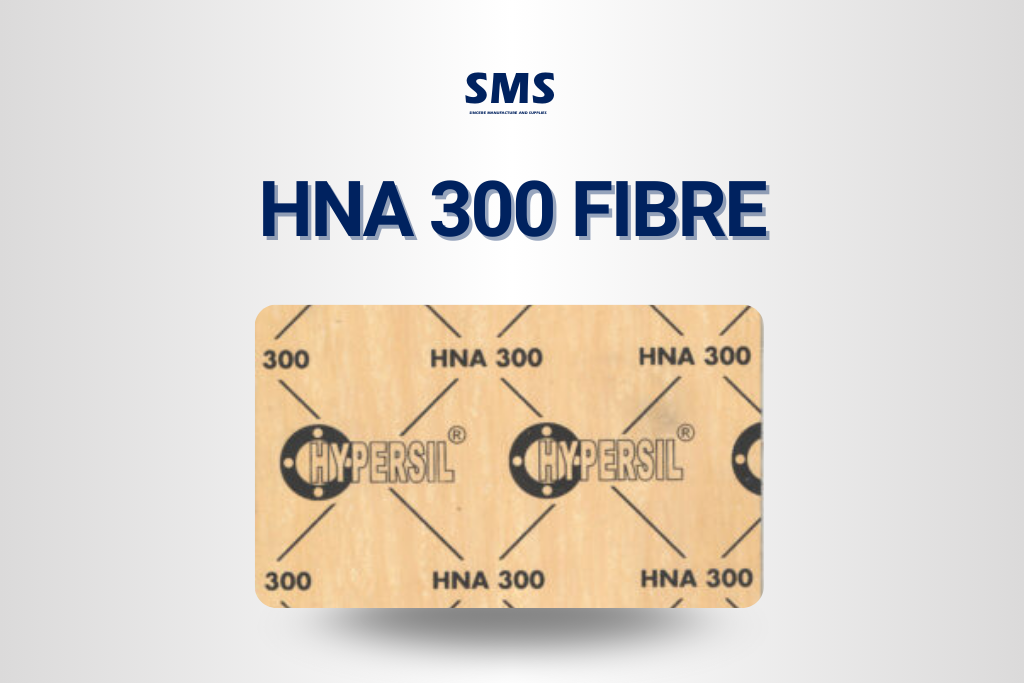

HNA 300 FIBRE

HNA 300 Fibre Jointing Sheets are manufactured from premium aramid fibre, mineral fibre, and NBR, designed for medium to high loadings. This advanced material provides excellent resistance to water, oil, and gases, ensuring superior sealing performance in demanding industrial environments. With its durability and resilience, HNA 300 Fibre is widely trusted in pipelines, compressors, gas meters, and internal combustion engines, making it an ideal choice for high-temperature and high-pressure sealing applications.

Technical Specifications

• Conforms to Standards: ASTM F36A, ASTM F146, DIN 52911, DIN 3535, DIN 52913
• Max Peak Temperature: 350°C
• Max Continuous Temperature: 250°C
• Max Operating Pressure: 100 Kg./CM²

Typical Applications

• Compressors
• Pipelines
• Gas meters
• Internal combustion engines

Key Features

• Made with high-quality aramid fibre, mineral fibre, and NBR
• Excellent resistance to oil, water, and gases
• Performs under high temperature up to 350°C
• Handles operating pressure up to 100 Kg./CM²
• Designed for medium to higher load applications
• Provides long-term durability and reliable sealing

Available Sizes

• 0.5mm x 1.0m x 1.0m
• 0.5mm x 1.5m x 1.5m
• 1.0mm x 1.0m x 1.0m
• 1.0mm x 1.5m x 1.5m
• 1.5mm x 1.0m x 1.0m
• 1.5mm x 1.5m x 1.5m
